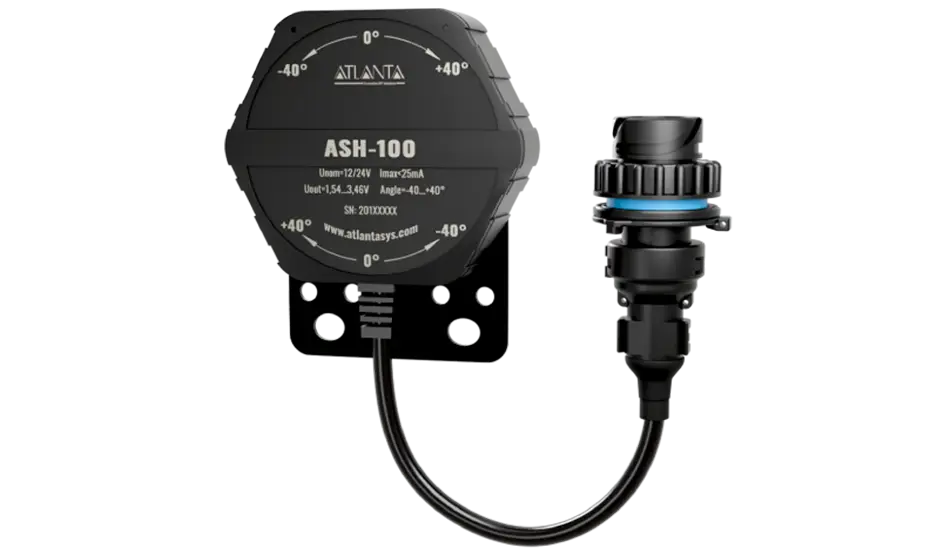

With RS-485 (CAN) output, the ASH-100 easily integrates into vehicle management systems, allowing seamless data transfer for real-time tracking and enhanced fleet control.
Avoid overloading penalties and ensure compliance with load regulations. ASH-100 provides accurate load data that enhances driver and vehicle safety, protecting assets and reducing maintenance costs.
Built to withstand rugged environments, the ASH-100 performs reliably under various conditions, delivering consistent, high-quality data for continuous fleet operations.
| Output interfaces | RS-485 (CAN) |
| Discreteness | 1° |
| Measured angles | -40° to +40° |
| Power supply | 9-30V |
| Max current consump | 25mA for UTYP =12/24V |
| Output voltage | 1,54…3,46 V |
| Ambient operating temperature | -40°C to +85°C |
| Ingress Protection Rating | IP67 |
| Dimension | 107x90.8x45 mm (LxBxH) |
