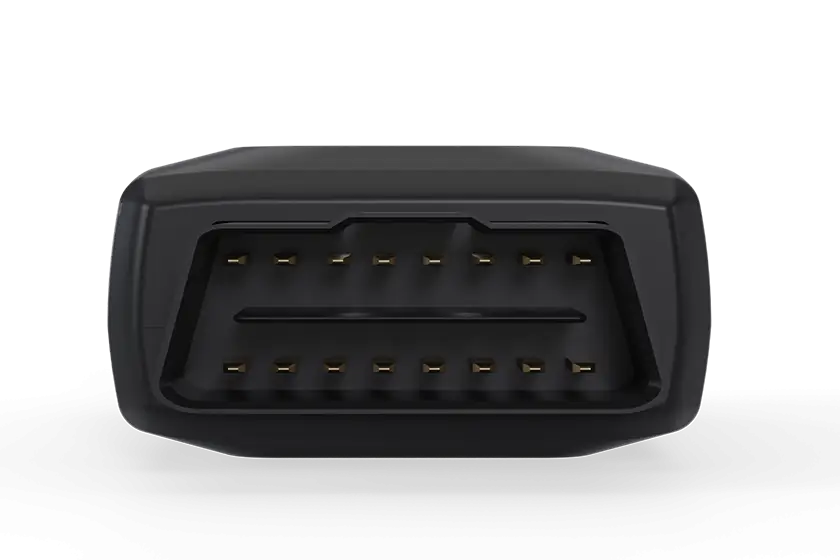

Simply plug in the device to start effortless and reliable tracking.
Robust and compact casing ensures device reliability, protection, and extended operational longevity.
| GNSS Antenna | Internal High Gain |
| GSM Antenna | Internal High Gain |
| Indicators | 3 LED's (Power, LTE, GNSS) |
| SIM | Micro SIM |
| USB | 2.0 Micro USB |
| Memory | 6,000 Log Packets |
| GNSS | GPS, GLONASS, BeiDou |
| Channels | 22 Tracking / 66 Acquisition Channel |
| Horizontal Position Autonomous | < 2.5m CEP |
| SBAS | Supported |
| Tracking Sensitivity | -160dBm |
| Re acquisition Sensitivity | -154dBm |
| Velocity | < 0.1m/s |
| Hot Start | < 1sec |
| Warm Start | < 30sec |
| Cold Start | < 35sec |
| Technology | LTE |
| 4G Band | B1, B3, B5, B8, B40, B41 |
| 2G Band | 900/1800 MHz |
| RF Power | Class 4 (2W@850/900MHz), Class 1 (1W@1800/1900MHz) |
| Data Transfer | GPRS Multi-Slot Class 12 |
| Coding Scheme | CS 1, 2, 3, 4 |
| SMS | SMS (text/data) |
| Voltage Range | 8-36V DC |
| Battery | 300mAh Li-Po 3.7V |
| Working Current | Sleep Mode < 25mA, Active Mode < 200mA @12V |
| Operating Temperature | - |
| Operating Humidity | - |
