Emergency button facilitates quick assistance and passenger safety in critical situations.

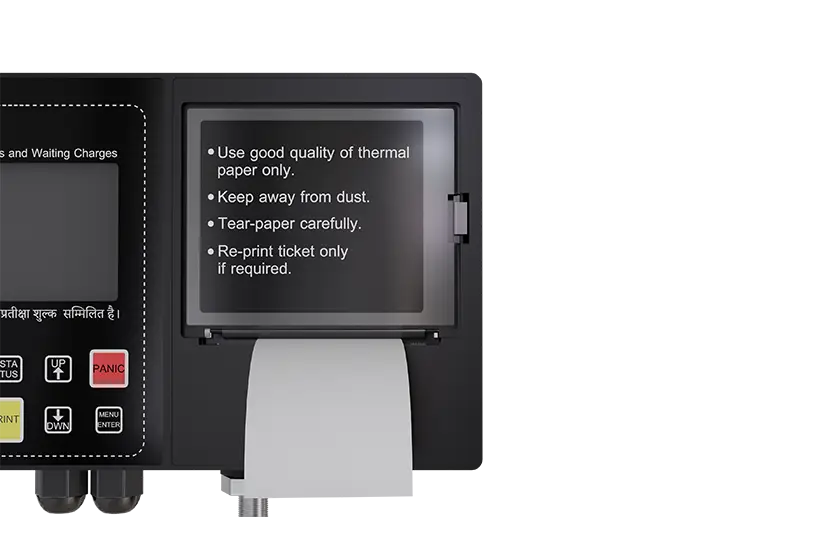

Compact thermal printer for instant, reliable fare receipts and records.

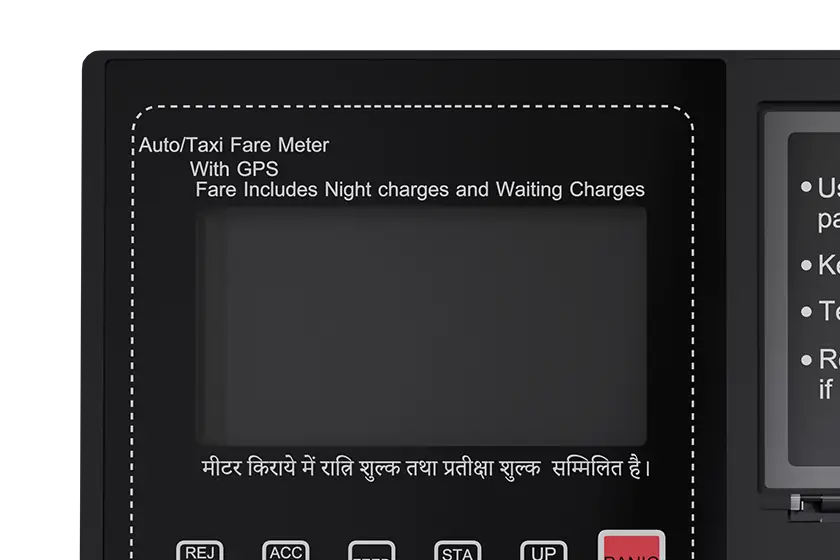

LCD display ensures clear fare calculation and enhanced user experience.
| Printer | Inbuilt 2 |
| Keypad | Membrane Type Keypad with 12 Keys |
| Display | Graphical LCD Display 128*64 |
| GNSS | GPS, IRNSS, GLONASS, GALILEO, BDS, QZSS |
| Channels | Tracking Channels( L1-75 / L5 -60) |
| Horizontal Position Autonomous | 1.8m CEP |
| SBAS | Supported |
| Tracking Sensitivity | -165 dBm |
| Re acquisition Sensitivity | -157 dBm |
| Cold Start | 15 Sec |
| Velocity | 0.1 m/s |
| Hot Start | 1 Sec |
| Warm Start | 5 Sec |
| Technology | GSM |
| 2G Band | 850/900/1800/1900 MHz |
| GPS | GPS, GLONASS, BDS, IRNSS |
| RF Power | Class 4 (2W@850/900MHz), Class 1 (1W@1800/1900MHz) |
| Coding Scheme | CS 1, 2, 3, 4 |
| Voltage Range | 9-30V DC |
| Battery | 1000mAh Li-Ion 7.4V |
| Dimensions (mm) | 200x120x69 mm (LXBXH) |
| Weight | 800g |
