Higher GNSS accuracy ensures precise location tracking and navigation capabilities.

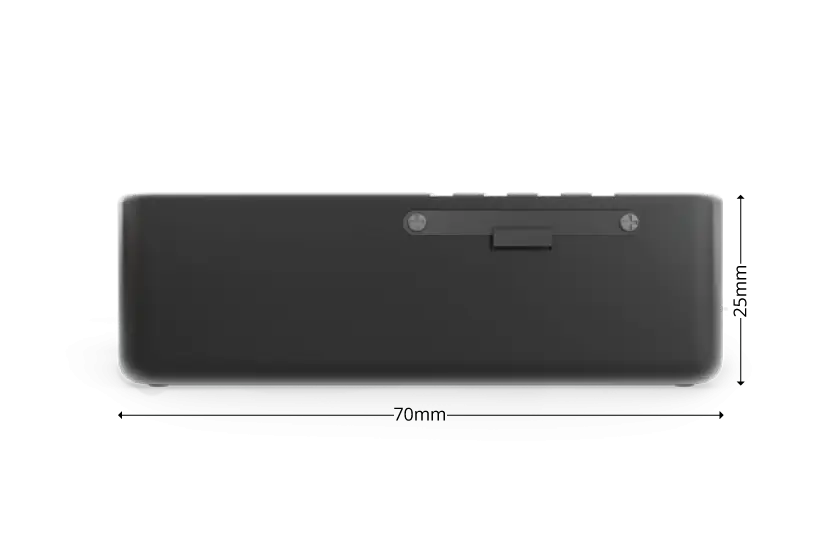

Robust casing ensures device reliability, protection, and extended operational longevity.
Sustained power for prolonged operational efficiency, minimizing downtime and enhancing reliability.
| GNSS Antenna | Internal High Gain |
| GSM Antenna | Internal High Gain |
| Indicators | 3 LED's (Charging, GSM, GNSS) |
| SIM | Micro SIM |
| USB | 2.0 Micro USB |
| Memory | 6,000 Log Packets |
| GNSS | GPS, GLONASS, QZSS, GAGAN |
| Channels | 22 Tracking / 66 Acquisition Channel |
| Horizontal Position Autonomous | < 2.5m CEP |
| Tracking Sensitivity | -165dBm |
| Hot Start | < 1 sec |
| Warm Start | < 30 sec |
| Cold Start | < 35 sec |
| Technology | GSM |
| 2G Band | 850/900/1800/1900 MHz |
| RF Power | Class 4 (2W@850/900MHz), Class 1 (1W@1800/1900MHz) |
| Data Transfer | GPRS Multi-Slot Class 12 |
| Coding Scheme | CS 1, 2, 3, 4 |
| SMS | SMS (text/data) |
| External Adapter | 5V DC, 1A Adapter |
| Battery | 1000mAh Li-Po 3.7V |
| Operating Temperature | -20 °C to +60 °C (With Battery), -30 °C to +80 °C (Without Battery) |
| Operating Humidity | 5% to 95% non-condensing at +40 °C |
| Dimensions | 70 x 40 x 25 mm (L x B x H) |
| Weight | 64 g |
| Scenarios | Multiple Alerts, No-Movement Event, on Demand Tracking |
| Conguration and rmware update | FOTA Web, Atlanta Configurator (USB) |
| SMS | Configuration, Events, Debug |
| GPRS commands | Configuration, Debug |
