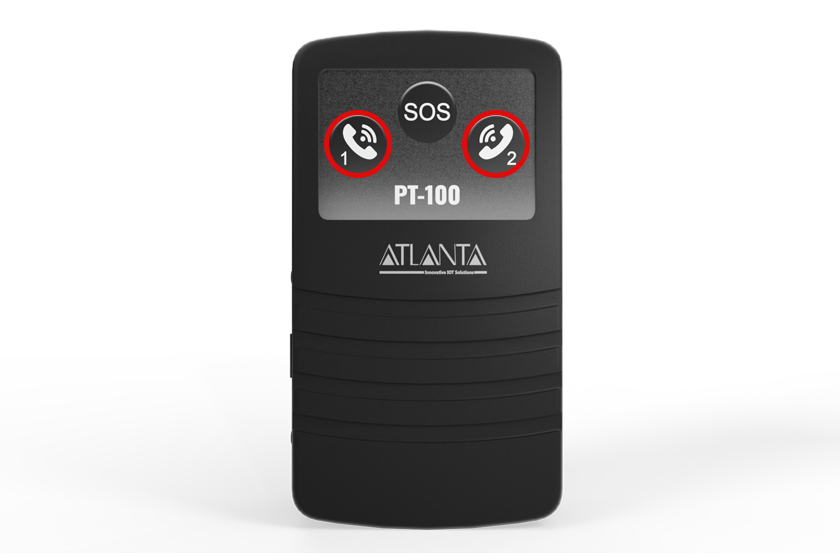

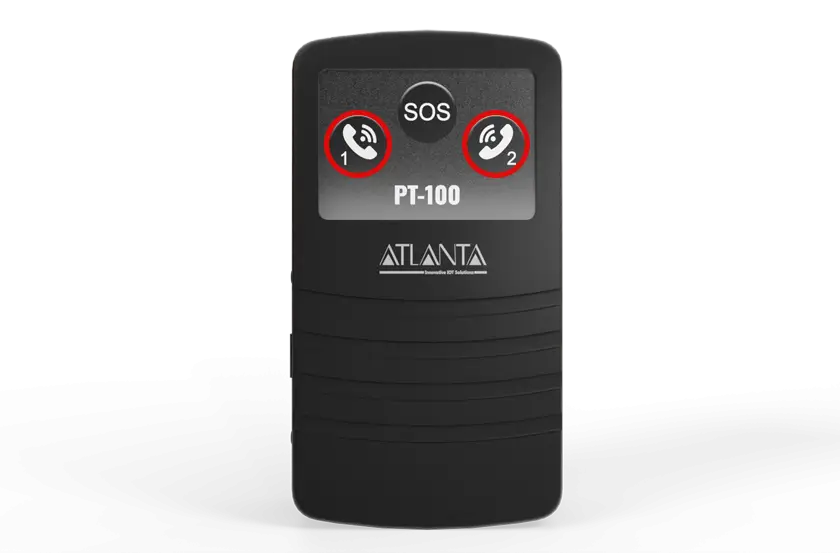

Instantly alerts pre-defined contacts in critical situations for swift assistance and safety.

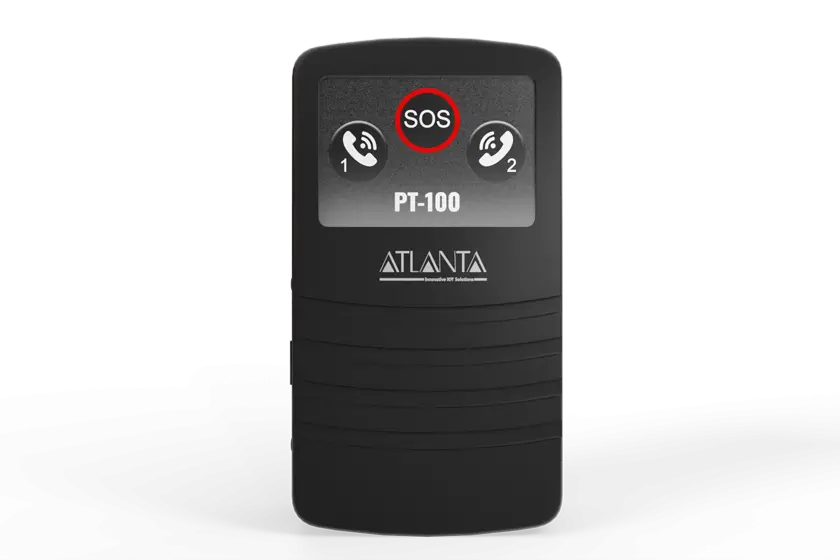

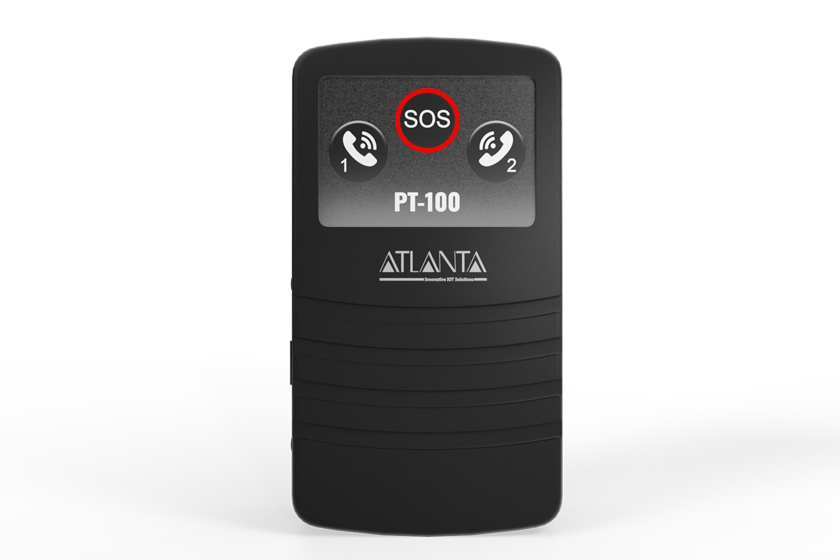

The SOS button instantly alerts emergency contacts, providing your real-time location for quick assistance.
Robust casing ensures device reliability, protection, and extended operational longevity.
| GNSS Antenna | Internal High Gain |
| GSM Antenna | Internal High Gain |
| Indicators | 3 LED's (Charging, GSM, GNSS) |
| SIM | Micro SIM |
| USB | 2.0 Micro USB |
| Memory | 6,000 Log Packets |
| Peripheral | Emergency Calling Buttons, SOS Button |
| GNSS | GPS, GLONASS, QZSS, GAGAN |
| Channels | 22 Tracking / 66 Acquisition Channel |
| Horizontal Position Autonomous | < 2.5m CEP |
| Tracking Sensitivity | -165dBm |
| Hot Start | < 1 sec |
| Warm Start | < 30 sec |
| Cold Start | < 35 sec |
| Technology | GSM |
| 2G Band | 850/900/1800/1900 MHz |
| RF Power | Class 4 (2W@850/900MHz), Class 1 (1W@1800/1900MHz) |
| Data Transfer | GPRS Multi-Slot Class 12 |
| Coding Scheme | CS 1, 2, 3, 4 |
| SMS | SMS (text/data) |
| External Adapter | 5V DC, 1A Adapter |
| Battery | 1000mAh Li-Po 3.7V |
| Operating Temperature | -20 °C to +60 °C (With Battery), -30 °C to +80 °C (Without Battery) |
| Operating Humidity | 5% to 95% non-condensing at +40 °C |

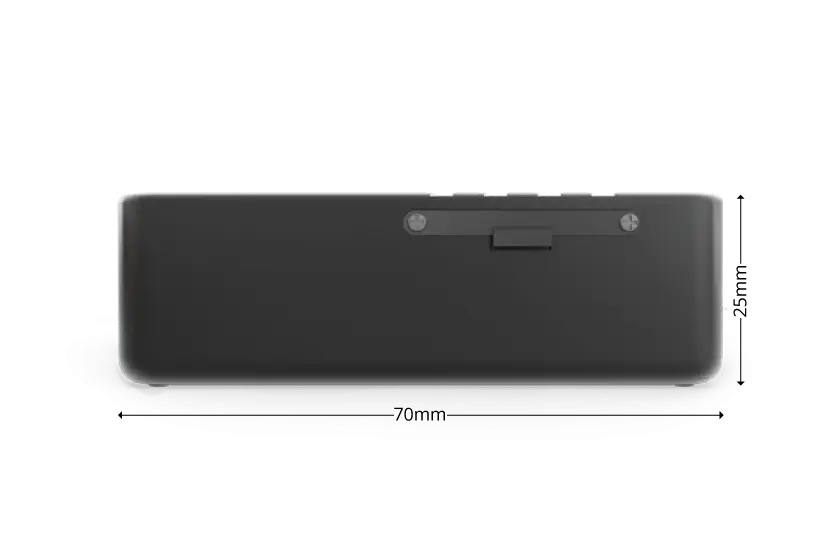

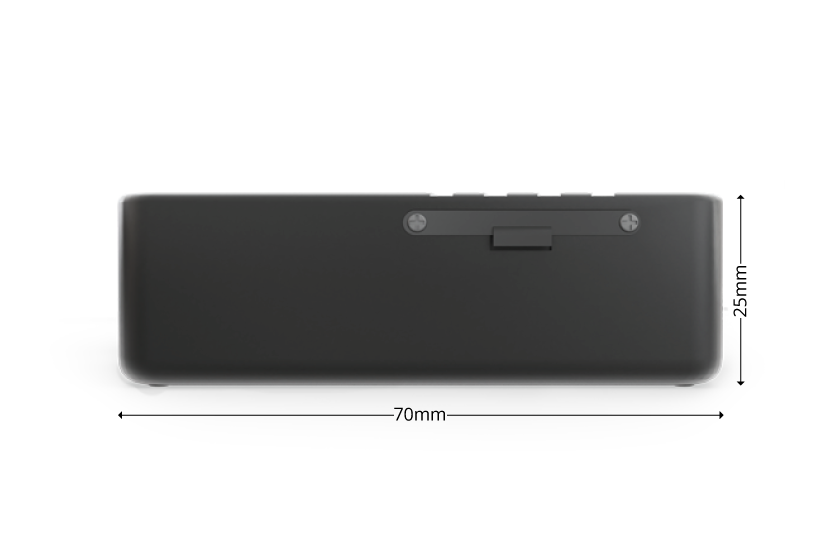

| Dimensions | 70 x 40 x 25 mm (L x B x H) |
| Weight | 64 g |
| Scenarios | Multiple Alerts, No-Movement Event, on Demand Tracking |
| Conguration and rmware update | FOTA Web, Atlanta Configurator (USB) |
| SMS | Configuration, Events, Debug |
| GPRS commands | Configuration, Debug |
