The IP67-rated casing ensures robust protection against dust and water immersion.

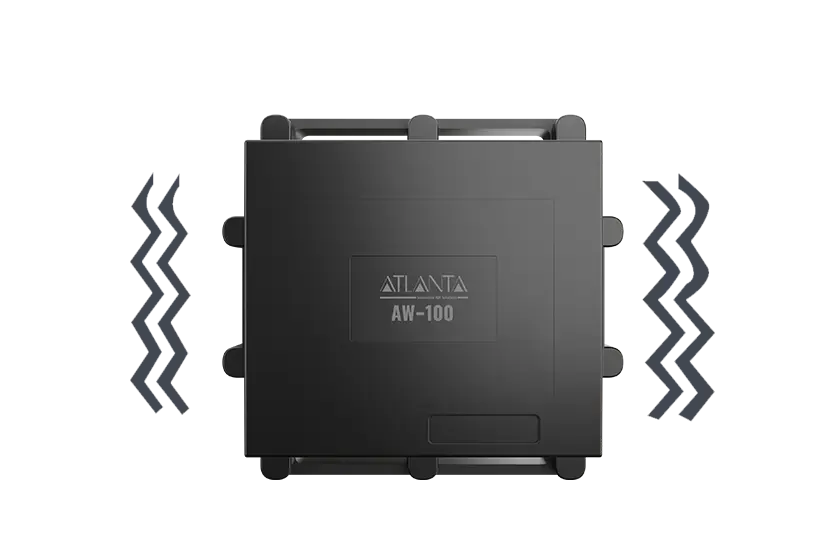

Receive instant notifications of unauthorized access or tampering attempts for enhanced security.
Sustained power for prolonged operational efficiency, minimizing downtime and enhancing reliability.
| GNSS Antenna | Internal High Gain |
| LTE Antenna | Internal High Gain |
| Indicators | 3 LED's (Charging, LTE, GNSS) |
| SIM | Micro SIM |
| USB | 2.0 Micro USB |
| Memory | 10,000 Log Packets |
| GNSS | GPS, GLONASS, BeiDou |
| Channels | 22 Tracking / 66 Acquisition Channel |
| Horizontal Position Autonomous | < 2.5m CEP |
| Tracking Sensitivity | -165dBm |
| Hot Start | < 1 sec |
| Warm Start | < 30 sec |
| Cold Start | < 35 sec |
| Technology | LTE |
| 4G Band | B1/B3/B5/B8/B34/B38/B39/B40/B41 |
| RF Power | Class 4 (2W@850/900MHz), Class 1 (1W@1800/1900MHz) |
| Data Transfer | GPRS Multi-Slot Class 12 |
| Coding Scheme | CS 1, 2, 3, 4 |
| SMS | SMS (text/data) |
| External Adapter | 5V DC, 1A Adapter |
| Battery | 5000mAh Li-Po 3.7V |
| Operating Temperature | -20 °C to +60 °C (With Battery), -30 °C to +80 °C (Without Battery) |
| Operating Humidity | 5% to 95% non-condensing at +40 °C |
| Dimensions | 109.1 x 99 x 33 mm (L x B x H) |
| Weight | 160 g (Approx) |
| Scenarios | Multiple Alerts, No-Movement Event, on Demand Tracking |
| Conguration and rmware update | FOTA Web, Atlanta Configurator (USB) |
| SMS | Configuration, Events, Debug |
| GPRS commands | Configuration, Debug |
