Sustained power for prolonged operational efficiency, minimizing downtime and enhancing reliability.
Higher GNSS accuracy ensures precise location tracking and navigation capabilities.

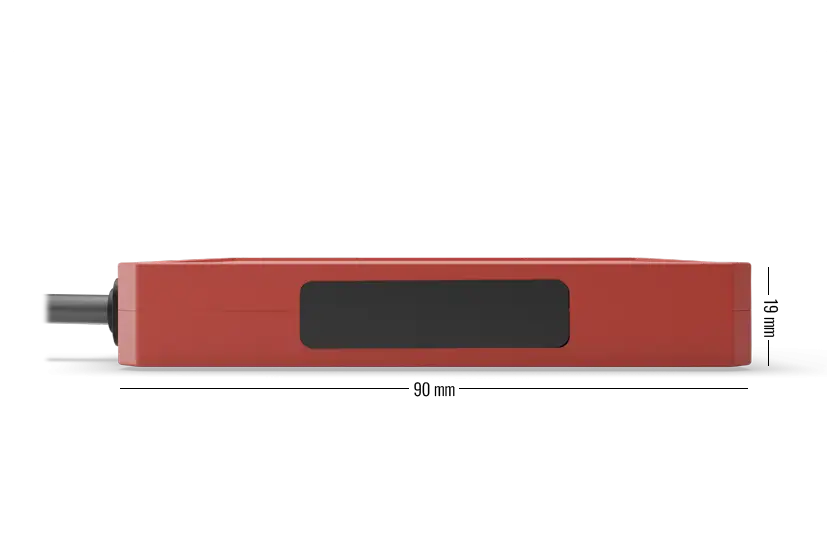

Robust casing ensures device reliability, protection, and extended operational longevity.
| Digital Input | 1 |
| Digital Output | 1 |
| GNSS Antenna | Internal High Gain GNSS |
| GSM Antenna | Internal High Gain GSM |
| Indicators | 4 LEDs (Power,Charging,GSM,GPS) |
| SIM | Micro SIM |
| Memory | 15,000+ Log Packets |
| GNSS | GPS, GAGAN, QZSS, BeiDou |
| Channels | 32 tracking channels, 96 capture channels, 210 PRN channels |
| Horizontal Position Autonomous | < 2.5m CEP |
| SBAS | Supported |
| Tracking Sensitivity | -158 dBm |
| Re-acquisition Sensitivity | -156 dBm |
| Velocity | 0.1 m/s |
| Hot Start | < 1 sec |
| Warm Start | < 10 sec |
| Cold Start | < 35 sec |
| Technology | GSM |
| 2G Band | 850/900/1800/1900 MHz |
| RF Power | Class 4 (2W@850/900MHz), Class 1 (1W@1800/1900MHz) |
| Coding Scheme | CS 1, 2, 3, 4 |
| SMS | Text |
| Data | GPRS Multislot Class |
| Voltage Range | 8-36V DC |
| Battery | 250mAh Li-Po 3.7V |
| Working Current | Sleep Mode < 5mA, Active Mode < 100mA |
| Operating Temperature | -20 °C to +60 °C (With Battery), -30 °C to +75 °C (Without Battery) |
| Operating Humidity | 5% to 95% non-condensing at +40 °C |
| Dimensions | 91 x 51 x 19 mm (L x B x H) |
| Weight | 64 g |
| Sensors | Motion Sensor |
| Scenarios | Over speeding, DOUT, Idling data |
| Configuration and firmware update | FOTA, SMS, GPRS Commands |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GPS |
| Ignition detection | Digital input1 |
