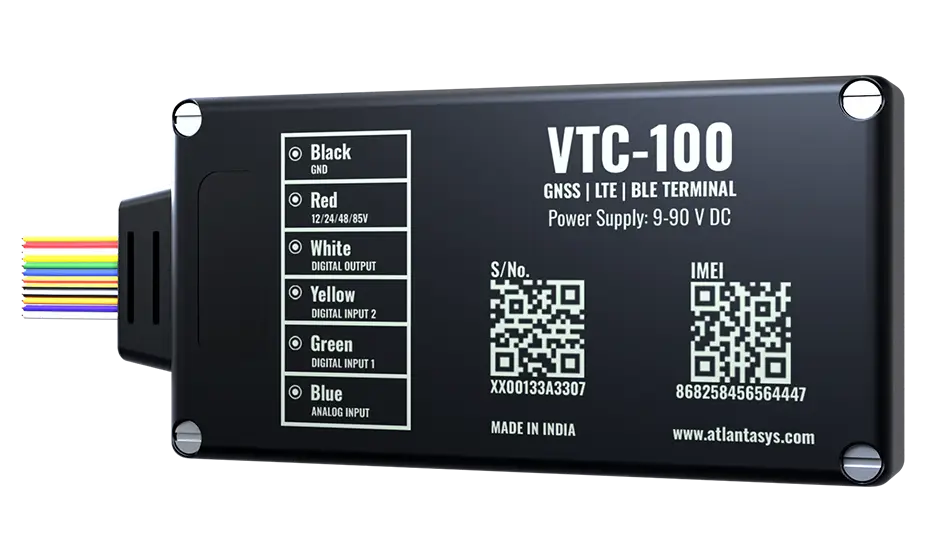

Name: VTC-100
Brand: Atlanta Systems
Availability: InStock

Features

Bluetooth Connectivity

Bluetooth connectivity expands usage scenarios with beacons, humidity, and temperature sensors.

High voltage range enables extended operation and enhanced performance efficiency.

Monitor vehicle temperature for optimal operation and maintenance, ensuring efficiency and safety.

GNSS	GPS, GLONASS, GALILEO, BeiDou, QZSS
Channels	47 Tracking Channels
Horizontal Position Autonomous	<2.0m CEP
SBAS	Supported
Tracking Sensitivity	-166 dBm
Re acquisition Sensitivity	-147 dBm
Velocity	0.1m/s
Hot Start	<2 sec
Warm Start	<25 sec
Cold Start	< 30 sec

Technology	LTE CAT1, GSM
4G Band	EU: LTE FDD:B1/B3/B5/B7/B8/B20/B28, NA: LTE FDD: B2/B3/B4/B5/B7/B8/B28/B66, AS: LTE FDD: B1/B3/B5/B8, LTE TDD: B34/B38/B39/B40/B41
2G Band	EU: 850/900/1800/1900 MHz, NA: 850/900/1800/1900 MHz, AS:900/1800 MHz
RF Power	EU & NA: GSM850/EGSM900: Class 4 (33 dBm ±2 dB), DCS1800/PCS1900: Class 1 (30 dBm ±2 dB), LTE-FDD: Class 3 (23 dBm ±2 dB), AS: EGSM900: Class 4 (33 dBm ±2 dB), DCS1800: Class 1 (30 dBm ±2 dB), LTE-FDD: Class 3 (23 dBm ±2 dB), LTE-TDD: Class 3 (23 dBm ±2 dB)
Coding Scheme	CS 1, 2, 3, 4
SMS	Point to point MO & MT, SMS cell broadcast

Voltage Range	9-90V DC
Battery	260mAh Li-Po 3.7V

Specification	BLE 5.0
Supported Peripherals	Temperature & Humidity Sensor, Universal BLE Sensors Support, Beacons

Working Current	Sleep Mode < 25mA, Active Mode < 180mA @ 12v
Operating Temperature	-30 °C to +70 °C (without battery), -20 °C to +60 °C (with battery)
Operating Humidity	5% to 95% non-condensing at +40 °C
Storage Temperature	-40 °C to +85 °C (without battery), -20 °C to +60 °C (with battery)
Ingress Protection Rating	IP54
Battery charge temperature	0 °C to +45 °C
Battery discharge temperature	-20 °C to +60 °C
Battery storage temperature	-20 °C to +45 °C for 1 month, -20 °C to +35 °C for 6 months
