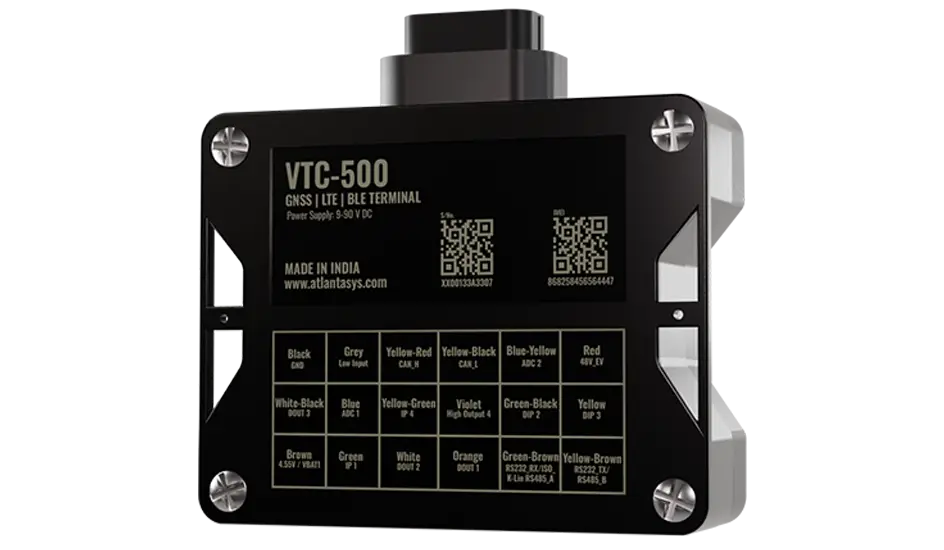

VTC-500 – Enterprise Vehicle Telematics

Name: VTC-500
Brand: Atlanta Systems
Availability: InStock

Dive into the epitome of vehicle tracking prowess with Atlanta’s VTC-500. With 4G connectivity and Bluetooth, it ensures seamless data transmission, even in remote areas. Boasting high-gain internal GNSS and LTE antennas,rnit guarantees uninterrupted real-time monitoring and operational efficiency. Compatible with CAN communication, it can extract multiple data protocols from the vehicle. From logistics and transportation to automotive securityrnand fleet management, the VTC-500 stands as a cornerstone across diverse industries, delivering safety and productivity in equal measure.

Image 360°

Features

Advanced Network Support

Advanced CAT-1, CAT-M1, NB-2 connectivity with 2G fallback ensures uninterrupted operations.

Integrated CAN Port

Efficiently monitor vehicle data and performance through seamless connectivity with with built-in CAN port.

High Voltage Range

High voltage range enables extended operation and enhanced performance efficiency.

Product Specifications

Digital Input	4
Digital Output	4
Analog Input	2
1-Wire	1
CAN	1
RS232/ RS485	1
GNSS Antenna	Internal High Gain GNSS
LTE Antenna	Internal High Gain LTE
Indicators	3 LED's (Charging, LTE, GNSS)
SIM	Micro SIM or eSIM
USB	2.0 Micro USB
Memory	64Mb internal flash memory

GNSS	GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Channels	47 Tracking Channel
Horizontal Position Autonomous	2.0m CEP
SBAS	Supported
Tracking Sensitivity	-166dBm
Re acquisition Sensitivity	-147 dBm
Velocity	< 0.1 m/s (within +/- 15% error)
Hot Start	< 1sec
Warm Start	< 25sec
Cold Start	< 30sec

Technology	LTE CAT1, GSM
4G Band	EU: LTE FDD:B1/B3/B5/B7/B8/B20/B28, NA: LTE FDD: B2/B3/B4/B5/B7/B8/B28/B66, AS: LTE FDD: B1/B3/B5/B8, LTE TDD: B34/B38/B39/B40/B41
2G Band	EU: 850/900/1800/1900 MHz, NA: 850/900/1800/1900 MHz, AS:900/1800 MHz
RF Power	EU & NA: GSM850/EGSM900: Class 4 (33 dBm ±2 dB), DCS1800/PCS1900: Class 1 (30 dBm ±2 dB), LTE-FDD: Class 3 (23 dBm ±2 dB); AS: EGSM900: Class 4 (33 dBm ±2 dB), DCS1800: Class 1 (30 dBm ±2 dB), LTE-FDD: Class 3 (23 dBm ±2 dB), LTE-TDD: Class 3 (23 dBm ±2 dB)
Coding Scheme	CS 1, 2, 3, 4

Voltage Range	9-90 V DC
Battery	1000 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Internal fuse	2A, 125V

Specification	BLE 5.0
Supported Peripherals	Temperature & Humidity sensor, Universal BLE sensors support, Beacons

Working Current	Sleep Mode < 25mA, Active Mode < 180mA @ 12V*
Operating Temperature	-30 °C to +80 °C (without battery), -20 °C to +60 °C (with battery)
Operating Humidity	5% to 95% non-condensing at +40 °C
Ingress Protection Rating	IP67
Battery charge temperature	0 °C to +45 °C
Battery discharge temperature	-20 °C to +60 °C
Battery storage temperature	-20 °C to +45 °C for 1 month, -20 °C to +35 °C for 6 months
